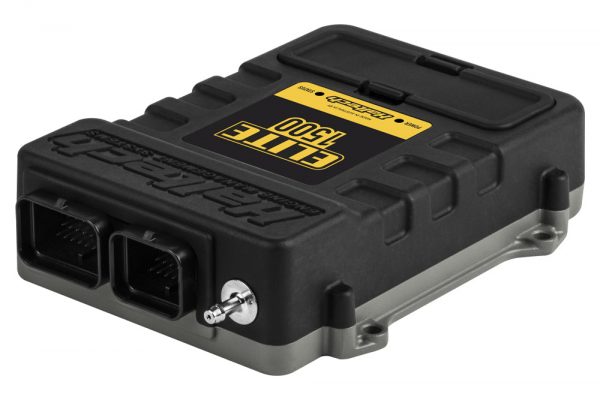

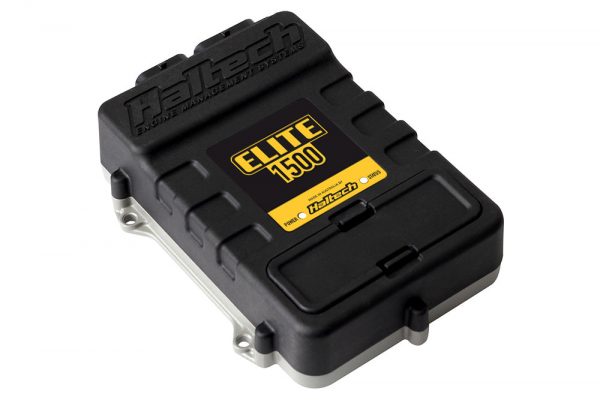

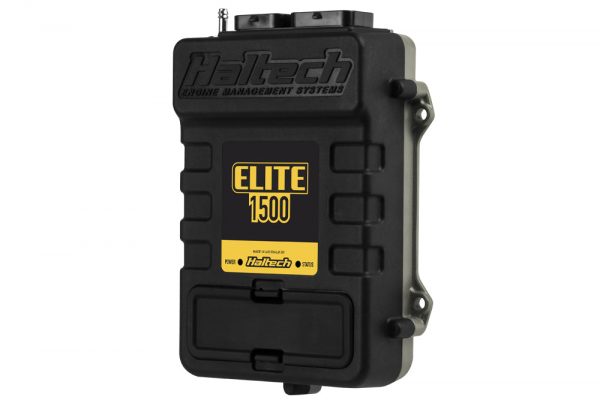

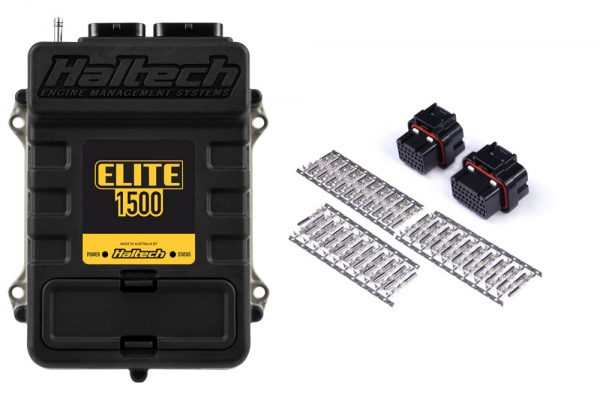

ECU OVERVIEW Featuring a robust, environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, knock control, and much more, the Elite 1500 ECU provides engine calibrators the tools they need to get the job done right. Alongside the Elite 1500 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.Supports 1 to 12 cylinder engines2 rotor enginesNormally aspirated or forced inductionLoad sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)Staged, sequential, semi sequential, batch or multipoint injection patternsDistributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systemsConnect to a wide range of display dashes and expansion devices via CAN.4 x fuel injection outputs4 x ignition outputs12 x digital outputs10 x analogue voltage inputs4 x synchronised pulsed inputs3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor)2 x dedicated engine position inputs with extensive trigger type supportUp to 45 channels of Input & Output (I/O) expansion (via CAN)USB laptop communication (Windows)ESP Calibration Software – intuitive and easy to use
